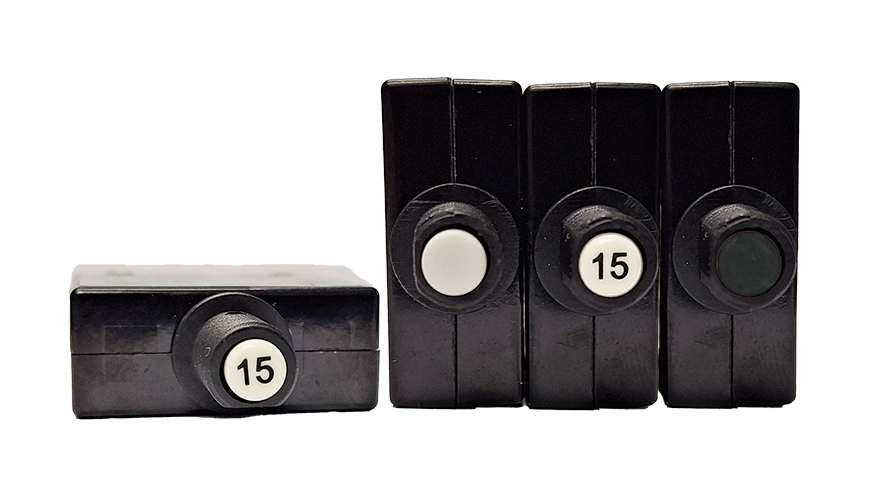

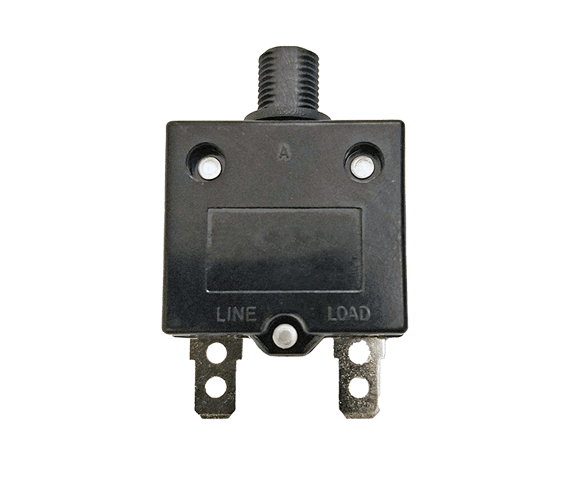

Headline for MP Series 13 Push-to-Reset Circuit Breaker
This compact, economical, Push-to-Reset Supplementary Circuit Breaker provides protection for a wide variety of applications and is available in several configurations, and terminal and hardware options. This "Trip Free" circuit breaker cannot be held ON during fault conditions. Ignition protected and safe for use aboard gas powered boats. The Series 13 Push-to-Reset Thermal Circuit Breaker is suitable for marine, on/off highway, medical, and small appliance industries. Optional sealing boot available. Fits standard circuit breaker blocks when configured with the quick connect terminal option.
Product Features
1
Key Features
UL1077 rated Push-to-Reset Circuit Breaker
Ignition Protected
Trip Free
1
Ratings
Voltage - 250VAC/50VDC
Current - 3 to 40 Amps
Short Circuit Interrupt - 1kA @ 250VAC, C1 and 0.3kA @ 50VDC, C1 (UL1077)
1
Testing Performed
Corrosion: 96hr sale-spray
Humidity: 240hr at 95% RH
Quality Certifications
Additional Information on MP Series 13
Data Sheet
Our data sheet includes physical configuration details, operating characteristics, and more.
